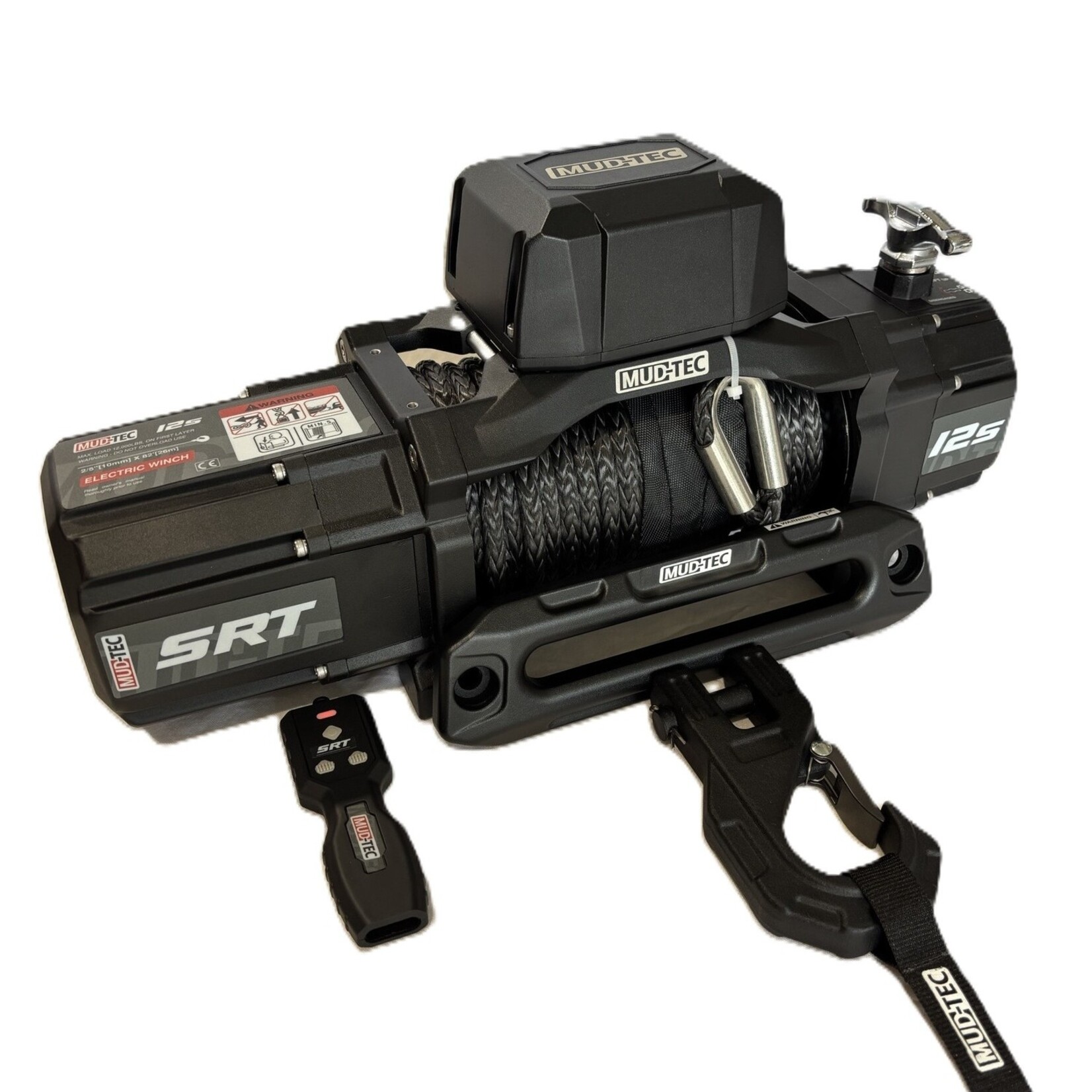

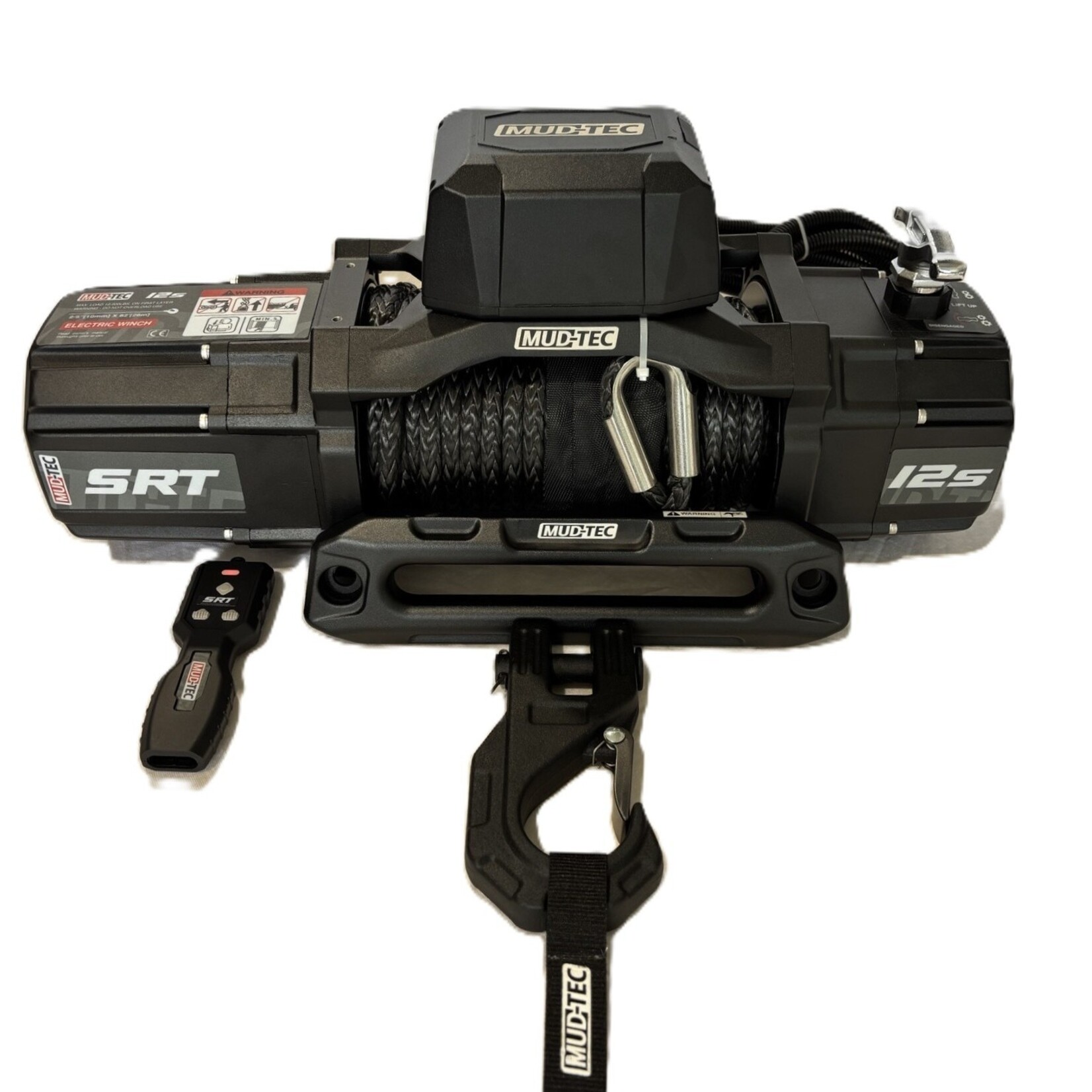

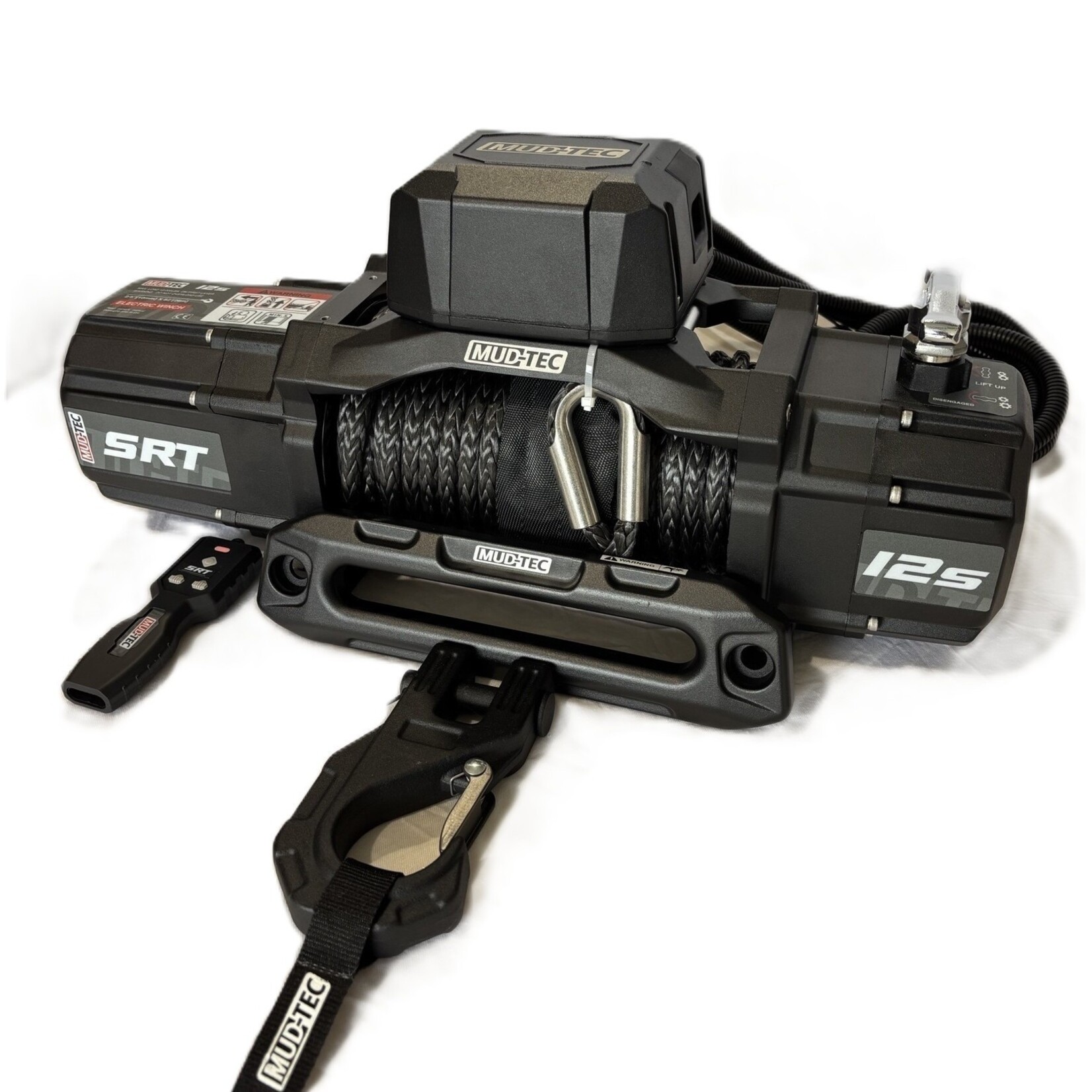

MUDTEC SRT 12S 12,000 lbs (5,443 kg) Winch – 7.0HP, Synthetic Rope, High-Performance Design

Unleash Power and Precision

The MUDTEC SRT 12S is engineered for serious off-roaders, adventurers, and professionals who demand uncompromising strength and control. With an impressive 12,000 lbs (5,443 kg) pulling capacity powered by a 7.0HP 12V DC motor, this winch delivers dependable performance in even the toughest recovery situations.

Its 3-stage planetary steel gear system ensures maximum torque, smooth operation, and reliability, while the automatic screw cone brake offers precise load holding and enhanced safety during operation.

Innovative Design

Crafted with a new black frosted finish and durable corrosion-resistant materials, the SRT 12S combines rugged beauty with long-lasting protection. The all-steel shell enhances durability and safeguards the winch from harsh environments. Its innovative structure also improves thermal insulation and heat dissipation, ensuring optimal gearbox performance and extending operational life during heavy-duty use.

High-Performance Power

Driven by a 7.0HP 12V series wound motor and a three-stage planetary geartrain, the MUDTEC SRT 12S delivers outstanding pulling efficiency. Equipped with an 85 ft (26 m) synthetic nylon rope (Ø10mm / Ø2/5”), it provides superior strength while remaining lightweight, flexible, and safe for handling.

Superior Planetary Gearing

The advanced triple planetary gear system features three true sets of planetary gears, delivering coaxial deceleration and torque multiplication for powerful and consistent performance. This intelligent configuration ensures smooth operation, rapid recovery speed, and extended gear life even under heavy load conditions.

Revolutionary Control

Stay in command with the new 2-in-1 remote control system, combining wired and wireless infrared control in one multifunctional unit. With a signal range of up to 100 ft (30 m), it gives you maximum freedom and flexibility during recovery operations. Whether you’re working close up or at a safe distance, the MUDTEC control system ensures precision and reliability every time.

Versatile Compatibility

Designed for ultimate versatility, the MUDTEC SRT 12S is ideal for ATVs, UTVs, trucks, SUVs, jeeps, boats, modified vehicles, and multi-purpose utility trailers. Its compact mounting pattern (10" × 4.5" / 254 × 114.3 mm) allows for easy installation on a wide range of setups.

Key Specifications

• Rated Line Pull: 12,000 lbs (5,443 kg)

• Motor: 12V DC Permanent Magnet, 7.0HP / 4800W

• Brake: Automatic Screw Cone

• Geartrain: 3-Stage Planetary Steel Gears

• Gear Ratio: 234:1

• Clutch: Sliding Geared Ring

• Rope: Ø10mm × 26m (Ø2/5" × 85’) Synthetic Nylon

• Drum Size: Ø64mm × 223mm (Ø2.48" × 8.8")

• Mounting Bolt Pattern: 254 × 114.3 mm (10" × 4.5"), 4-M10

• Net Weight: 28 kg (62 lbs)

Built to Perform. Engineered to Last.

With its combination of innovative design, powerful performance, and superior engineering, the MUDTEC SRT 12S sets a new benchmark for winch reliability and versatility — whether you’re conquering trails, towing loads, or rescuing vehicles from the toughest terrain.
