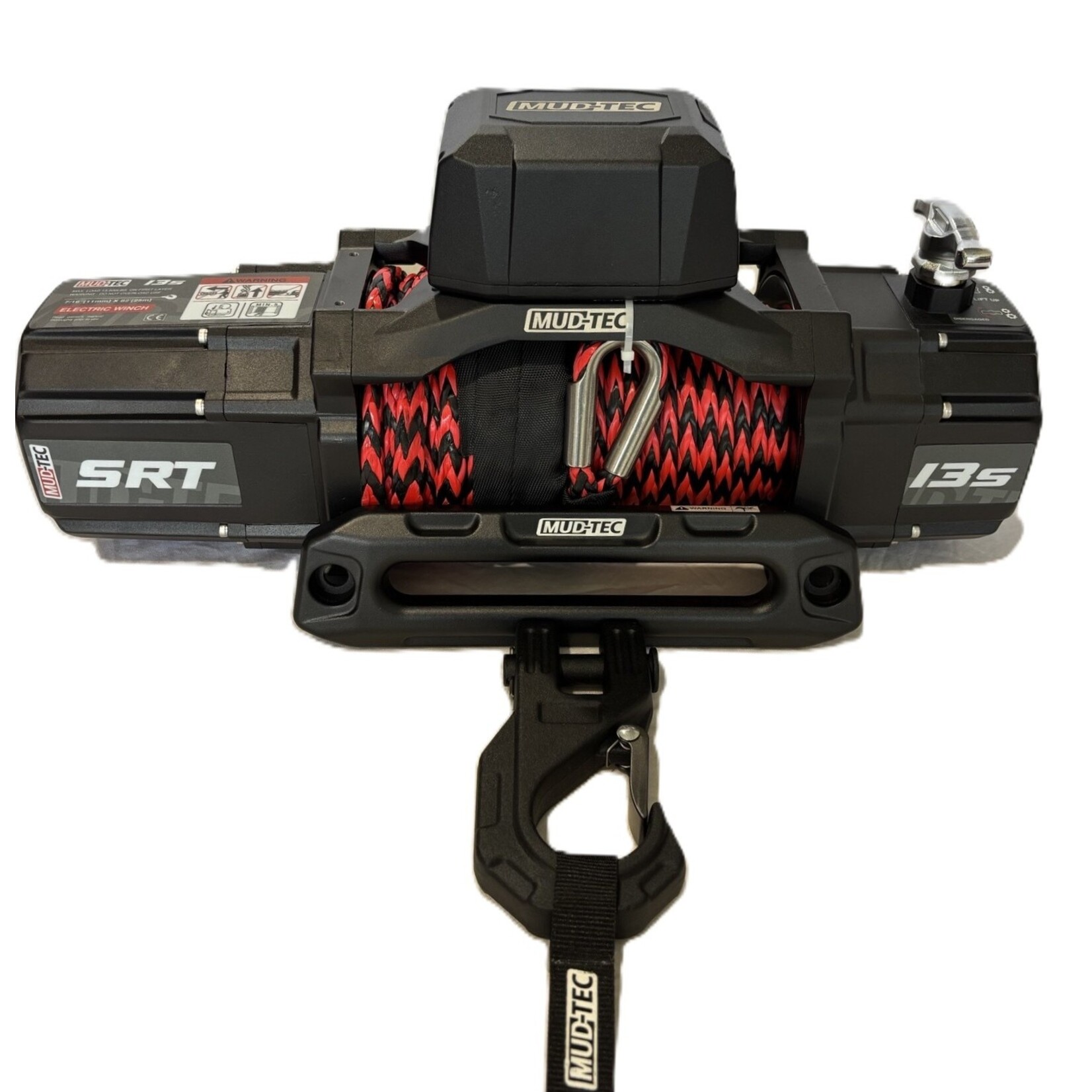

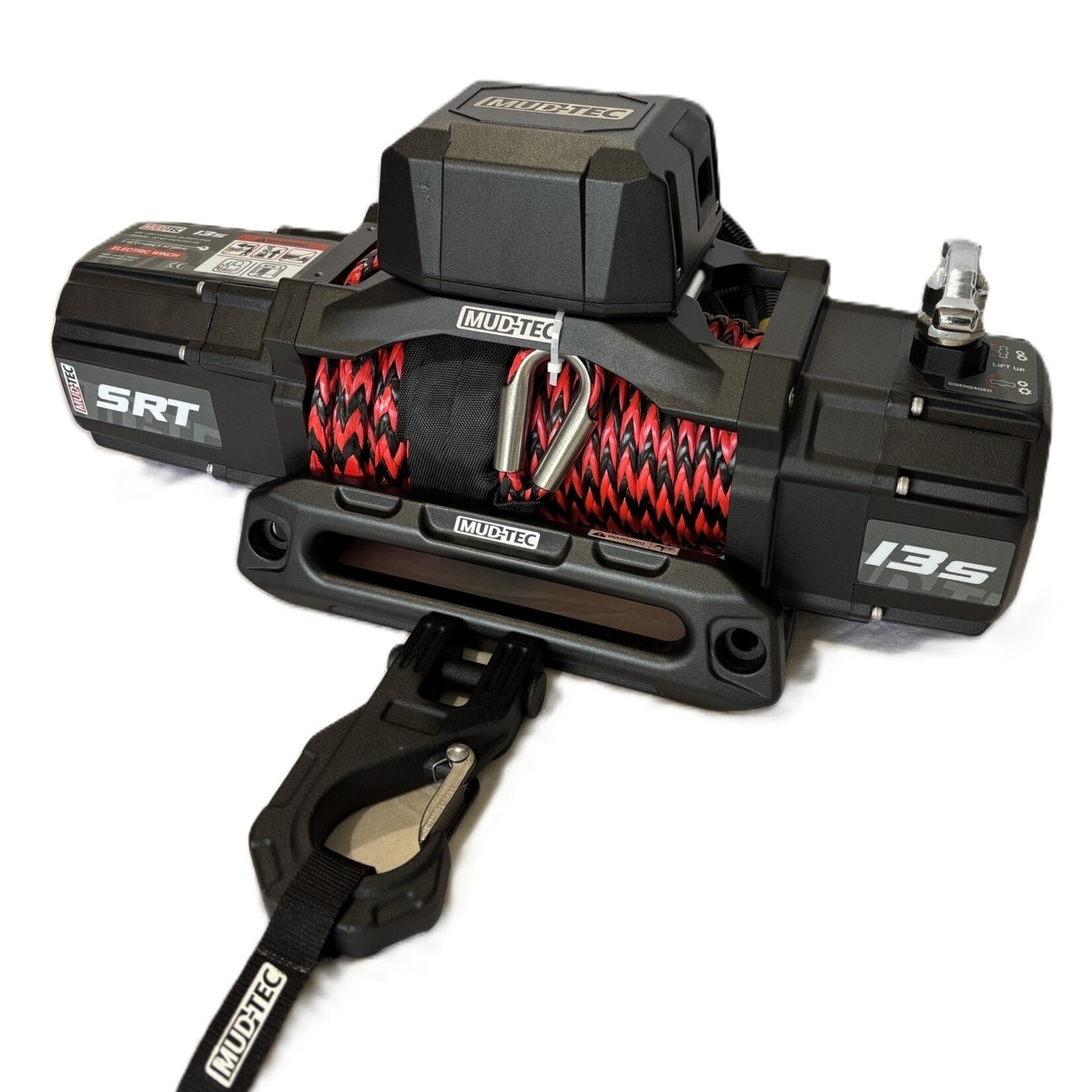

MUDTEC SRT 13S 13,500 lbs (6,123 kg) Winch – 7.2HP, Synthetic Rope, Innovative Design & Extreme Power

Pure Strength and Reliability for Every Challenge

The MUDTEC SRT 13S is built for adventurers and professionals who demand maximum pulling power and dependable performance. With an impressive 13,500 lbs (6,123 kg) rated line pull and a powerful 7.2HP 12V DC motor, this winch delivers smooth, consistent force under the toughest conditions.
Whether you’re recovering vehicles, moving heavy loads, or conquering extreme terrain, the SRT 13S provides the power and control you need to get the job done.

Innovative Design

The newly designed MUDTEC SRT 13S blends durability with modern style. The black frosted finish combined with new rust-resistant materials ensures long-lasting protection against corrosion.
Its all-steel shell shields the internal components from harsh environments, while the improved structure enhances heat dissipation and thermal insulation, guaranteeing longer, more reliable operation during demanding use.

High-Performance Power

Driven by a 7.2HP 12V series-wound motor and a three-stage planetary gear system, the SRT 13S delivers exceptional pulling efficiency and torque.
Equipped with a free-spooling clutch for quick rope release, it allows smooth and precise control. The synthetic nylon rope, measuring 85 ft (26 m) in length and 7/16" (11 mm) in diameter, combines high strength with lightweight handling and improved safety compared to traditional steel cables.

Superior Planetary Gearing

The advanced three-stage planetary geartrain uses true triple planetary sets that provide differential function, deceleration, torque multiplication, and reverse control.
By combining multiple planetary gear groups, the system achieves a large gear reduction ratio (234:1) for efficient power transfer, smooth operation, and exceptional load handling even under extreme conditions.

Revolutionary Control

Take command with the new 2-in-1 remote control system, featuring both wired and wireless infrared operation in a single, multifunctional controller.
With an impressive range of up to 100 ft (30 m), you can operate your winch safely and conveniently from near or far—ensuring precision and flexibility in any recovery situation.

Versatile Compatibility

Engineered for versatility, the MUDTEC SRT 13S is specially designed for ATVs, UTVs, cars, boats, trucks, jeeps, modified vehicles, and multi-purpose utility trailers.
Its mounting bolt pattern (10" × 4.5" / 254 × 114.3 mm) ensures easy installation across a wide range of vehicles and winch mounts.

Key Specifications

• Rated Line Pull: 13,500 lbs (6,123 kg)

• Motor: 12V DC Permanent Magnet, 7.2HP / 5400W

• Brake: Automatic Screw Cone

• Geartrain: 3-Stage Planetary Steel Gears

• Gear Ratio: 234:1

• Clutch: Sliding Geared Ring (Free Spooling Clutch)

• Rope: Ø11mm × 26m (Ø7/16" × 85’) Synthetic Nylon

• Drum Size: Ø64mm × 223mm (Ø2.48" × 8.8")

• Mounting Bolt Pattern: 254 × 114.3 mm (10" × 4.5"), 4-M10

• Net Weight: 62 lbs (28 kg)

Built for Power. Engineered for Adventure.

The MUDTEC SRT 13S sets a new standard in winch performance and reliability. With its powerful motor, innovative design, and intelligent control system, it’s the ultimate solution for any recovery, towing, or off-road challenge — ready when you are.
