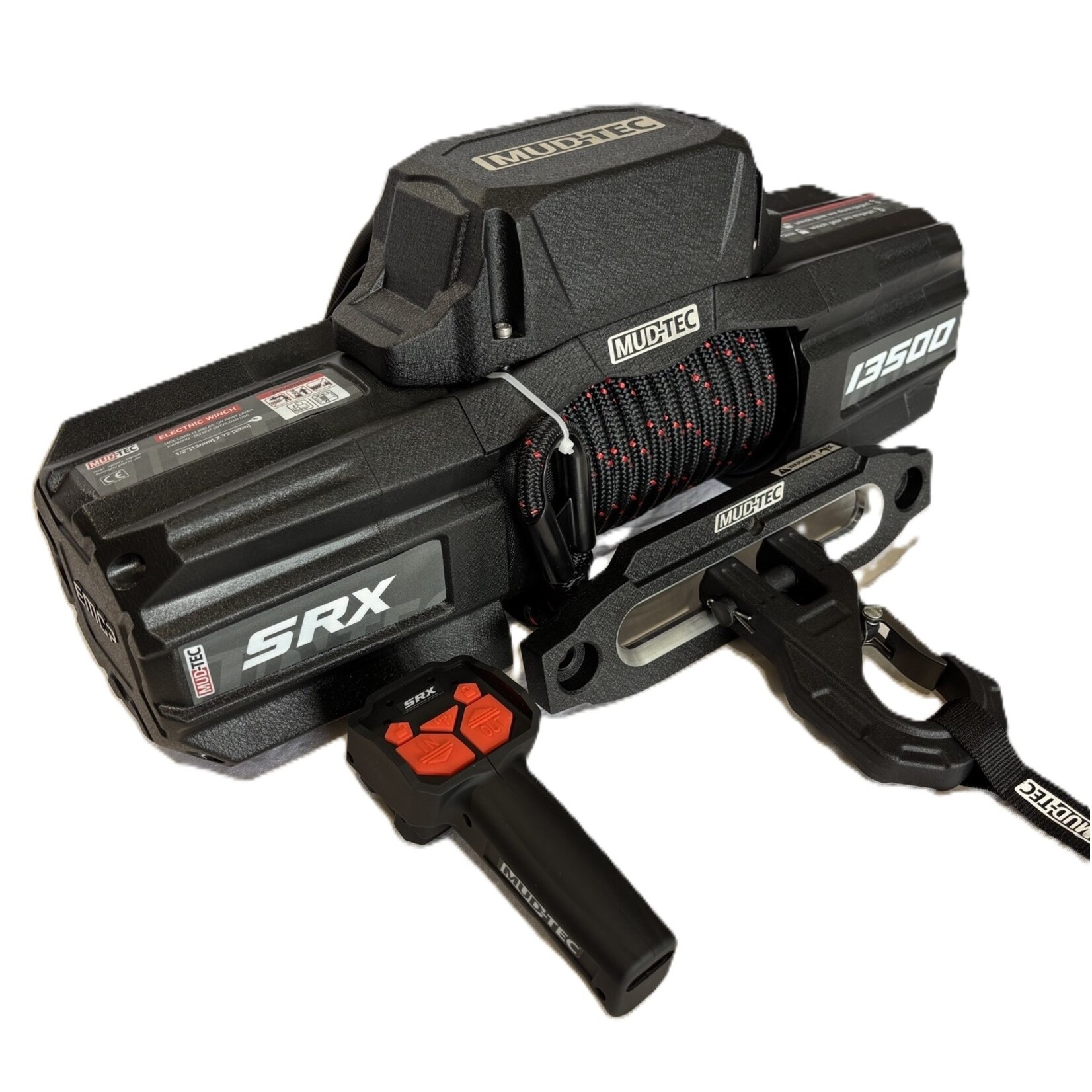

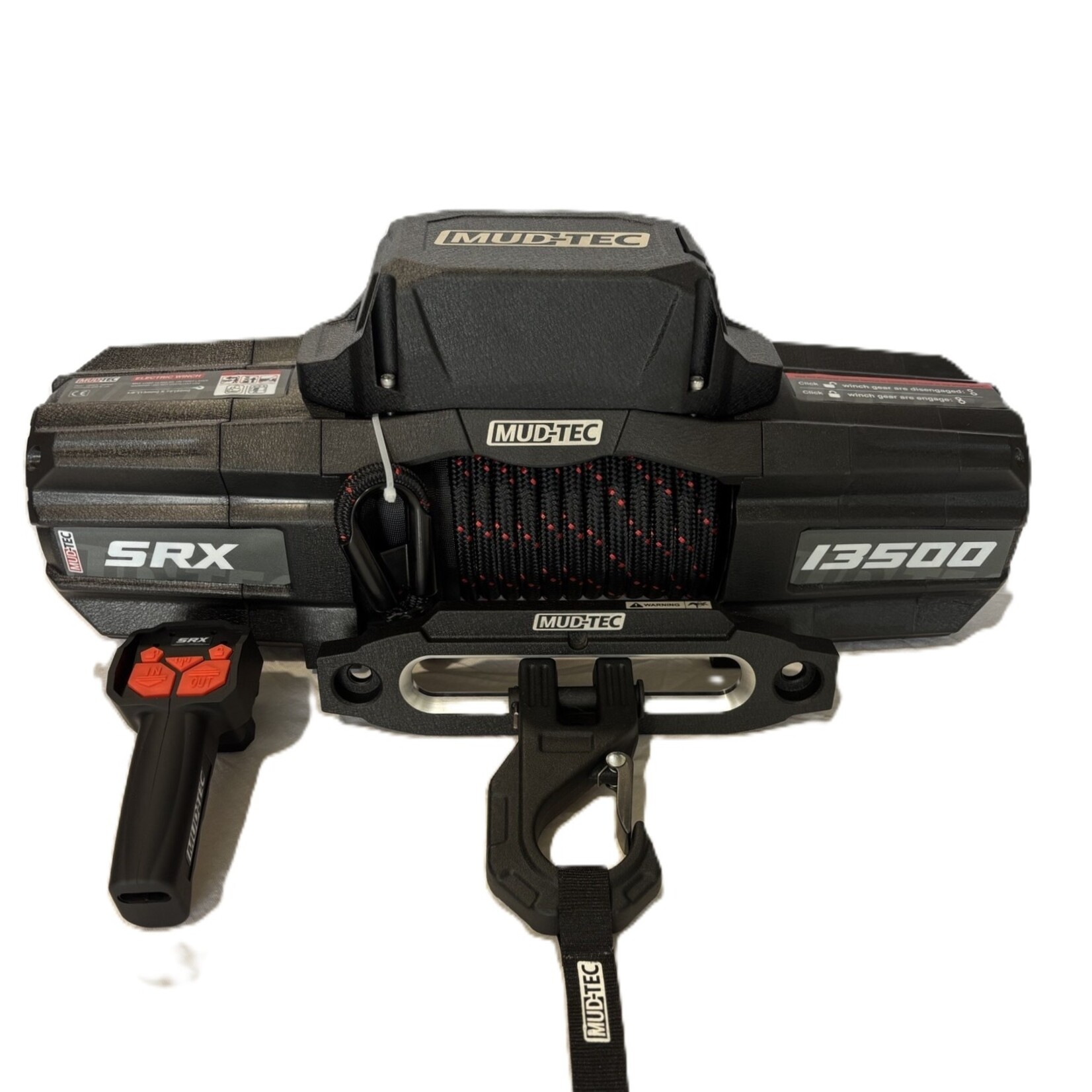

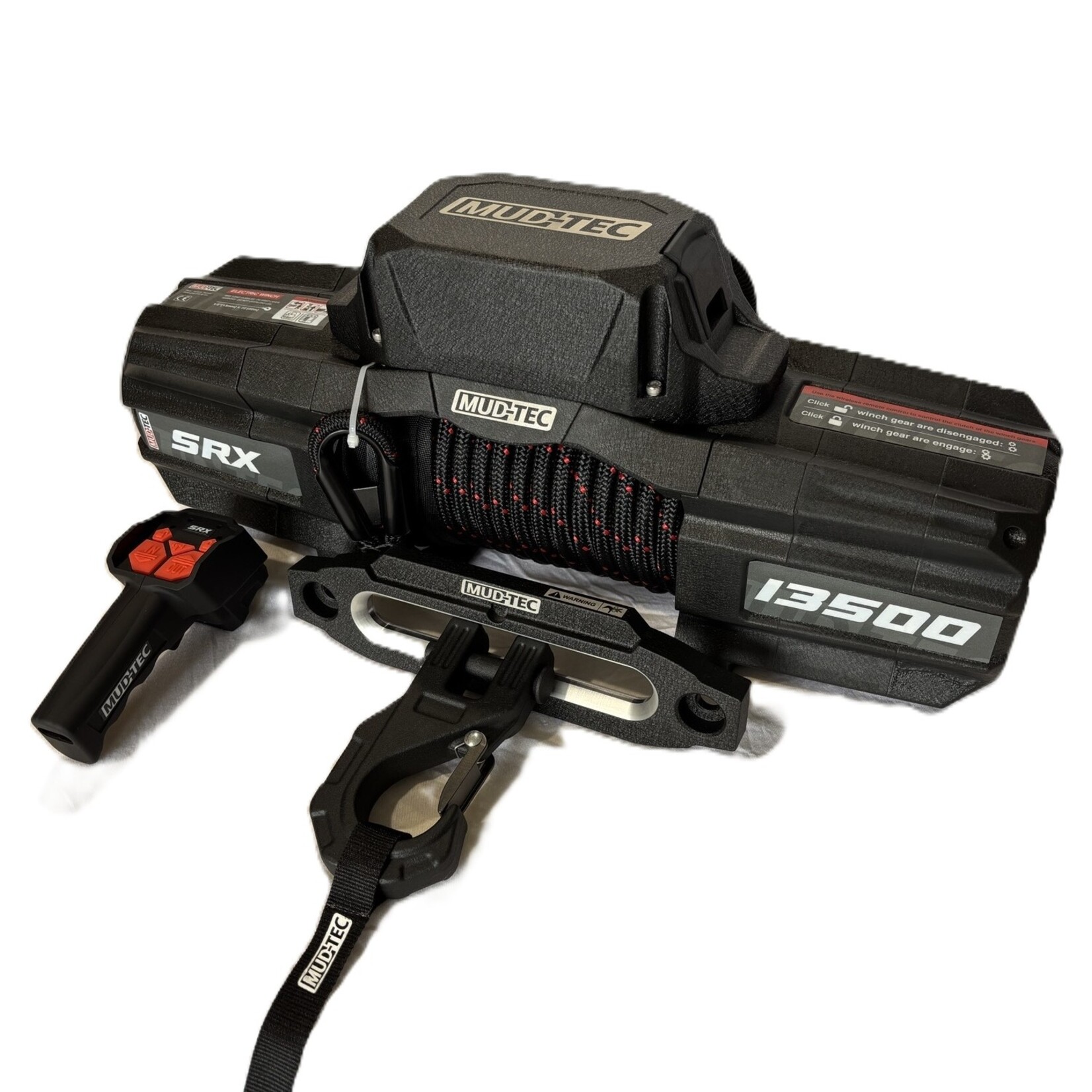

MUDTEC SRX13500 Winch – 13,500 lbs (6,123 kg), 7.2HP, 12V, Wireless Clutch System, Pure Copper Cable & Extreme Durability

Power Meets Precision

The MUDTEC SRX13500 is built for those who need uncompromising strength, smart control, and long-lasting reliability. With a rated pull of up to 13,500 lbs (6,123 kg) powered by a 7.2HP 12V DC motor, this winch delivers outstanding pulling capacity and smooth, consistent operation even in the harshest environments.

New Shell Painting Process

The SRX13500 features an advanced UV-resistant coating that protects against corrosion, fading, and environmental damage. The wear- and rust-proof finish allows the winch to perform confidently in snow, sand, and mud, ensuring years of dependable operation without loss of performance or appearance.

Revolutionary Wireless Clutch & Free-Spool System

Engineered with cutting-edge R&D technology, the SRX13500 introduces a fully automated clutch and free-spool system — a true game changer in winch operation.
With this innovative system, you can engage or disengage the clutch entirely via the wireless remote, eliminating the need for manual levers. This means you can safely switch between powered pulling and free-spooling from a distance of up to 100 feet (30 meters).

The system ensures seamless transition between load and release, providing:

• Faster setup during recovery situations

• Increased safety by keeping distance from the winch during operation

• Effortless rope control when spooling out or repositioning

This intelligent control mechanism redefines convenience and safety for both off-road enthusiasts and professionals.

Superior Safety Protection

Equipped with a reinforced fairlead mouth protection block, the SRX13500 keeps the winch hook securely stored and protected when not in use, preventing accidental damage and ensuring a clean, professional setup.

3-Stage Planetary Gear System

The 3-stage planetary steel gears with a 236:1 reduction ratio deliver smooth torque distribution and efficient power transfer. The system provides precise positive and negative load control while maintaining stable current flow within the rated range — ensuring safe and reliable operation without electrical surges.

Pure Copper Power Cable

The SRX13500 uses high-grade pure copper cabling known for excellent conductivity, stability, and corrosion resistance. This guarantees superior energy efficiency and minimal power loss — even during continuous heavy-duty use.

Key Specifications

• Rated Line Pull: 13,500 lbs (6,123 kg) / 12,000 lbs (5,443 kg)

• Motor: 12V DC Permanent Magnet – 7.2HP / 5400W (13500LB), 6.6HP / 4800W (12000LB)

• Brake: Automatic Screw Cone

• Geartrain: 3-Stage Planetary Steel Gears

• Gear Ratio: 236:1

• Clutch: Fully Wireless Controlled Clutch / Free-Spool System

• Rope: Ø13mm × 22m (Ø1/2" × 72’) Synthetic or Steel Option

• Drum Size: Ø64mm × 223mm (Ø2.48" × 8.8")

• Mounting Bolt Pattern: 254 × 114.3 mm (10" × 4.5"), 4-M10

• Net Weight: 35 kg (77 lbs)

Built for Strength. Designed for the Future.

The MUDTEC SRX13500 combines raw power, intelligent design, and advanced control. With its fully wireless clutch system, pure copper power lines, and corrosion-resistant shell, it redefines what a heavy-duty winch can be — smarter, safer, and stronger.
